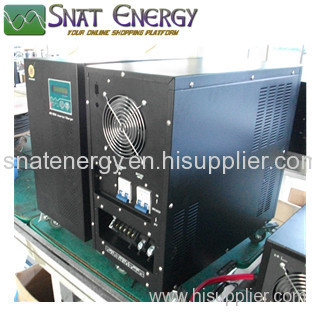

SNT-IPI 20KW 10KW 5KW Low frequency pure sine wave OFF GRID inverter

Payment Terms:	T/T,L/C,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNT-IPI 5KW

Means of Transport: Ocean,Air

Low frequency Off-Grid pure sine wave inverters from 300W to 50KW with CE certification.

Ms Rita Wang

Skype: powerelek
sales(at)snatenergy(.)com

snatenergy(at)hotmail(.)com

Welcome to visit our offical Online shopping platform www(.)snatenergy(.)com for more information.

Your China Solar off grid and on grid power system Center for Workshop, Wholesale, DIY, Drop-ship.

Low frequency Off-Grid pure sine wave inverters from 300W to 50KW with CE certification.

Our SNT-IPI Series inverter can be used for all kinds of loads.Not only for home use&office loads like Fans,Lights,Audio,TV,Computer,Fax,Call,etc.but also refrigerator,air conditioning,water pump,motor,etc.

Performance Specification of Intellignet Inverter

•The inverter is designed by our company independently; it's CPU controlled, high quality, low cost and pure sine wave intelligent inverter in the world.
•Full automatic intelligent switch. R232 Network Interface for option,our Conventional inverter do not have,pls ask the customer service for the cost.
•Output short circuit protection, when there is short circuit; the inverter will indicate it and lock the machine automatically.
•Overload protection .When there is overload, the machine will prompt you and delay lock machine automatically to protect the inverter from being damaged.

Inverter data sheet:

Model :		SNT-IPI 5000W
Rated Continuous power(W)		5000W
Peak Power(W)		10KW
Input	DC Battery input Voltage	48VDC/96VDC
	DC Battery input Voltage range	30V-60V/80V-120V
	AC city power input voltage range	110//220VAC ±10% with/without charger function for choice (Charge current 15A Max)
Output	AC output voltage	110/220VAC±10% Single phase
	Transfer time	8ms
	Waveform	Pure sine wave
	Frequency	50Hz/60Hz±0.5%
Working Efficiency		>85%
Cooling		By fan
Operating temperature		0-45C
Environmental humidity		0-95%Max,No condensation
Protection fuction		Input/output over high or low protecting;low battery protecting;surge and pike-currents protecting; overload protecting 100%-120% 30sec; >120% 100ms; >150%, 50ms output short circiut<150ms
Alarm		When batteries with low voltage,it will alarm,then,show down automatic
Display		LCD display
Machine Size(mm) D×W×H		473230490
Packing Size(mm)D×W×H		540290610
Net weight(kg)		60(1pcs)
Gross weight(kg)		68(1pcs)

Three working way for your choice:Before order, need confirm us for which working way you want.

1,Battery power priority: When battery power is lower, inverter will automatically use bypass function to take the load, and charge to battery at the same time..

2,Battery power priority: When battery power is lower, inverter will automatically use bypass function to take the load, NO NEED charge to battery.

3,The city power priority, when it has no city power, inverter will automatically switch to battery power to supply the load (UPS function)
